X Series Filter Skids

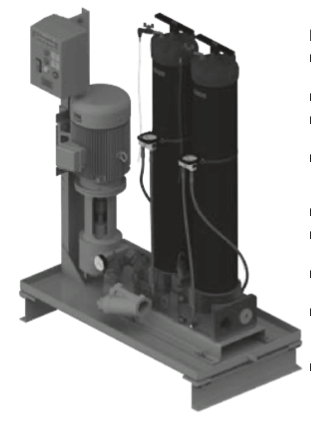

X Series filtration skids are compact, self-contained filtration systems equipped with high efficiency, high capacity elements capable of removing particulate contamination and/or water quickly and economically. They supplement in-line filters whenever the existing filtration is incapable of obtaining the desired ISO cleanliness level.
-
Specifications
- - collapse all
Technical Data
Flow Rating Up to 82 GPM (310 L/min) - Temperature Range 0°F to 180°F (-17°C to 82°C) - Bypass Valve Setting 50 psi (3.5 bar) for skid series X2, X3, X5, X7, and X8 - 40 psi (2.8 bar) for skid series X6 - Fluid Viscosity Up to 25,000 SUS - Compatibility All petroleum based hydraulic fluids. Contact Schroeder for use with other fluids, including ester and skydrol. Pump X2-X6: Continuous duty gear pump with integral 150 psi relief Flow dependent on skid series and motor. X7-X8: Positive displacement rotary screw pumps - Motor Horsepower dependent on skid series and flow - Porting Horsepower dependent on skid series and flow - Seal Material B = Buna (Standard) - H = EPR - V = Viton® - Power N = 230/460 VAC 3 PH. - E = 575 VAC 3 PH. - Pump and Motor Data
X2 Flow (GPM): 17, 37, 60, 82 - Motor (hp): 3, 5, 10, 10 - X3 Flow (GPM): 17, 37 - Motor (hp): 37, 10 - X5 Flow (GPM): 17, 37, 60, 82 - Motor (hp): 5, 10, 10, 15 - X6 Flow (GPM): 17, 37 - Motor (hp): 5, 10 - X7 Flow (GPM): 06 - Motor (hp): 2 - X8 Flow (GPM): 30 - Motor (hp): 15 - Skid Selection
X2 Viscosity Range: 100 - 2,000 SUS - Filter Housing(s): (1) QF5 - Maximum Flow: 82 GPM (310 L/min) - X3 Viscosity Range: 100 - 5,000 SUS - Filter Housing(s): (1) QF5 - Maximum Flow: 37 GPM (140 L/min) - X5 Viscosity Range: 100 - 2,000 SUS - Filter Housing(s): (2) QF5 or K9 in series - Maximum Flow: 82 GPM (310 L/min) - X6 Viscosity Range: 100 - 5,000 SUS - Filter Housing(s): (2) QF5 or K9 in series - Maximum Flow: 82 GPM (310 L/min) - X7 Viscosity Range: 100 - 25,000 SUS - Filter Housing(s): (1) QF5 - Maximum Flow: 6 GPM (23 L/min) - X8 Viscosity Range: 100 - 25,000 SUS - Filter Housing(s): (2) QF5 in parallel - Maximum Flow: 30 GPM (114 L/min) - -
