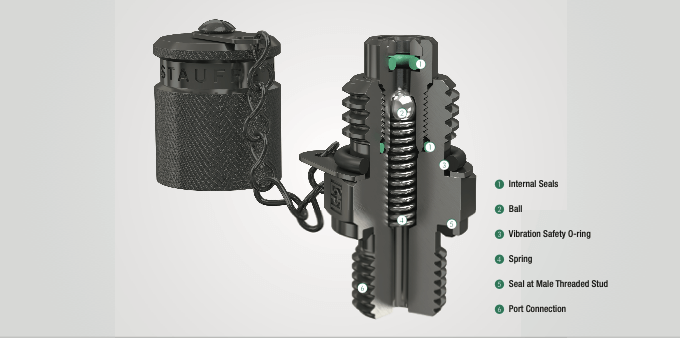

Test Coupling with Ball Check: SMK-15

The SMK-15 provides fast coupling for monitoring and control of pressure, venting, and sampling in high- and low-pressure systems. It has the advantage of a leak-proof connection before Ball Check is open and a self-locking metal protective cap.

• Specifications
  • + expand all
  • - collapse all

  MECHANICAL

  Types	SMK-15: Test Coupling with Male Threaded Stud	-
  	SMK-15 Type G: Test Coupling with Straight 24° Fitting	-
  	SMK-15 Type K: Test Coupling with 24° Taper / 0-Ring (DKO)	-
  Working Pressure	Max. 630 bar (9,137 psi)	-
  Connection Under Pressure	Up to 630 bar (9,137 psi) max.	-
  Metal Parts	Standard Material: Steel, zinc/nickel plated	-
  	Optional: Stainless Steel (1.4305 / AISI 303)	-
  	Optional: Stainless Steel (1.4571 / AISI 316 Ti)	-
  Ball	Stainless Steel	-
  Seal Material	NBR (Buna-N®)	Temperature Range: -20°C to +100°C / -4°F to +212°F
  	-	Note: Internal Seal Types made of FKM/FPM, even for standard NBR-type.
  	FKM/FPM (Viton®)	Temperature Range: -20°C to +200°C / -4°F to +392°F
  	EPDM	For Brake fluid, Temperature Range: -40°C to +150°C / -140°F to +302°F
  0-Ring	NBR (Buna-N®)	For vibration safety.
  Media	Suitable for hydraulic oils and other mineral based fluids	Check compatibility of Seal Type material
