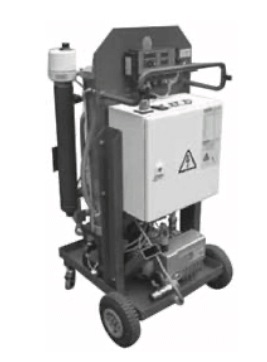

SVD01 Vacuum Dehydrator
The Schroeder Vacuum dehydrator SVD01 serves to dewater, degas and filter hydraulic and lubricating fluids. It is ideal for fluid tank sizes of up to 500 gallons, with its flow rate of up to 1.3 GPM, under normal water ingression rates of the fluid.
It works on the principal of vacuum dewatering to extract free and dissolved water as well as free and dissolved gases. By using KLC filter technology, with its high dirt holding capacity to remove particulate contamination, the SVD01 is very cost effective.
-
Specifications
- - collapse all
Technical Data
Dimensions 44.8”H x 23.6”W x 23.2”L - Dry Mass 265 lbs (120 kg) - Inlet Connections G 11⁄2” (BSPP) - Outlet Connections G 1” (BSPP) - Flow Rate 80 gallons/hour (1.3 GPM) - Inlet Pressure Atmospheric - Operating Pressure up to 65 psi (4.5 bar) - Fluid Service Temperature 50° F to 175°F (10°C to 79°C) - Fluid Viscosity 1,000 SUS Up to 4,000 SUS with optional heater Power Supply 230 VAC, 60 Hz, 16 AMP Optional - 460 VAC, 60 Hz Attainable Water Content < 100 ppm - Optional Relative Humidity Display Standard, 0-99% Range - Seals Standard - NBR Optional - Viton® Operating Fluids Mineral based hydraulic and lubrication fluids - -
