All Seat Assemblies

Scalable Seat Designs by GS Global Resources (GSGR) Seamlessly Integrated Into Your Machine.

In order to continuously reach peak performance, machine operators need an ergonomic cab environment designed for comfort. At GSGR, we take an OEM selected seat that fully meets your needs and priorities, design a custom console, and seamlessly integrate the full assembly into your machine. Air ride or mechanical seats can be either heated or cooled with manual or electric rotation. We utilize custom material and armrest options for your specific environment and desired look, including private labeling to support OEM branding.

Contact us today to speak with one of our engineering specialists about your next project.

*Disclaimer: The assemblies below are not available for individual purchase, but are meant to be examples of features we can integrate into a custom solution for OEMs.

• •

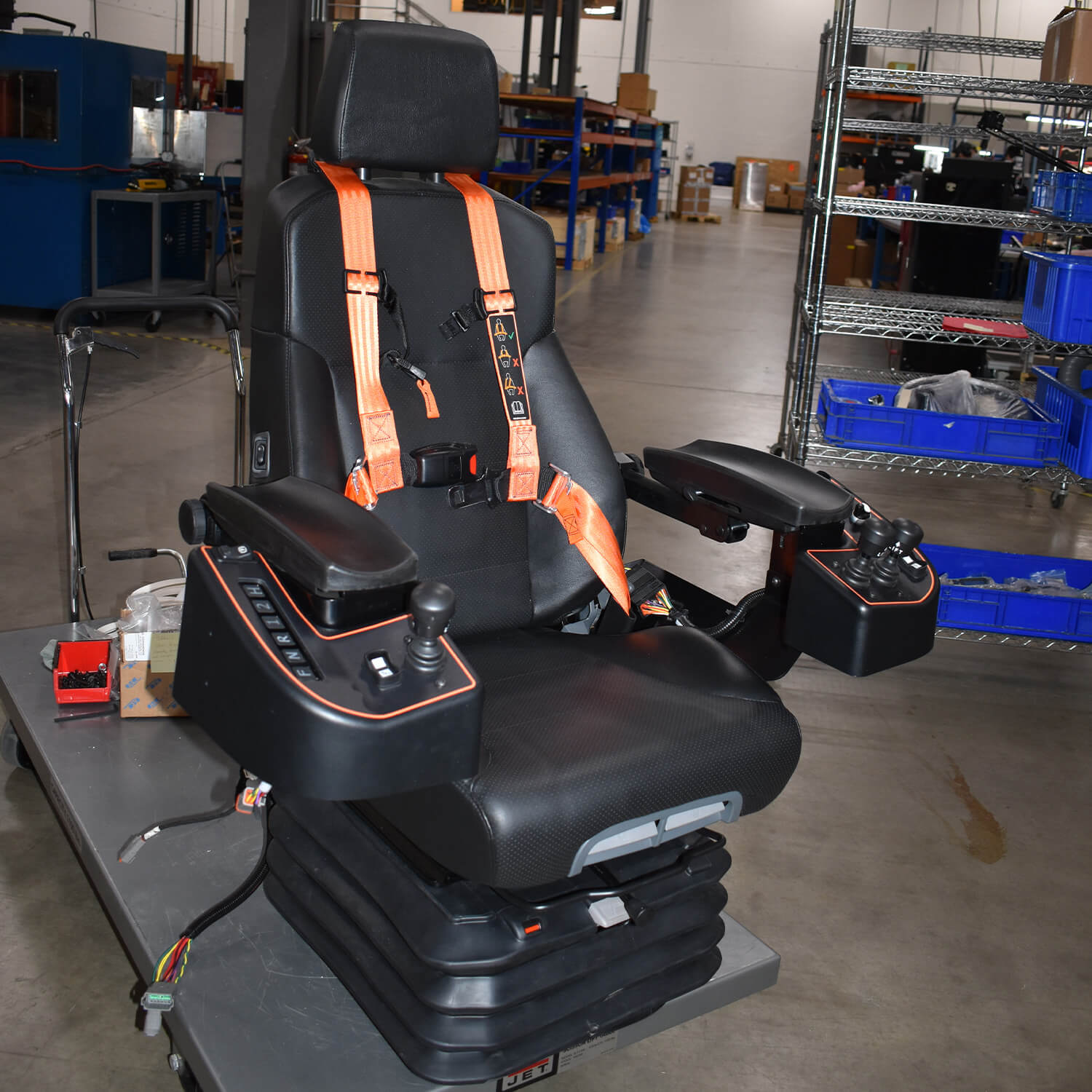

  • 180 Degree Rotating Seat for Multi-Person Utility Cab

    Take a 3D look at this custom seat designed with a 180 degree rotation, a 4-point safety harness, mechanical lumbar support, and proximity switch to give front and back position options. Any seat from GS Global Resources can also be designed with additional features and custom controls, including armrest assemblies, joysticks, switch panels, and more.

• •

  • 180 Degree Rotating Seat for Rail

    180 Degree Rotating Seat on a Steel Post Designed with Armrest Mounted Joystick Pods, Enabling the Operator to Perform All Primary Machine Functions With Joysticks.

• •

  • Air Ride Seat Assembly with 180 Degree Rotation

    Air Ride Seat with 180 Degree Rotation Designed for Rail Application This custom air ride seat assembly is designed for a rail application, giving the operator maximum visibility of the working area with a 180 degree rotation. The arm pods have LED switch panels, custom joysticks, and multiple programmable displays. Contact us to find out […]

• •

  • All Power Turn and Lift Custom Seat Assembly

    Designed for rail applications, this custom seat assembly has all power turn and lift capabilities, allowing the operator to achieve the best vantage point at all times. It also maintains optimal ergonomics with two large displays and downward angled joysticks, easily and comfortable used by the operator.

• •

  • Compact Seat with Angled Custom Joysticks

    Compact Seat Designed for Mining Application with Ergonomic Angled Custom Joystick Pods. Seat Utilized Air Ride Suspension and Mechanical Forward/Backward Adjustments. Arm Pods are Designed with Knob Controls and Dual Axis CAN Joysticks.

• •

  • Compact, Scalable Forestry Seat

    Take a 3D look at this compact, scalable seat designed for a forestry heavy equipment cab. It is designed with ergonomic custom joysticks and arm pods.

• •

  • Complex Operator Control System with Extended Consoles

    Designed to keep all controls right at the operator’s fingertips, this custom seat assembly is made for the mining industry. The extensive consoles, one above each armrest, contain dozens of buttons, multiple displays, and give the operator complete control of the machine.

• •

  • Custom Ergonomic Seat Assembly

    Designed with optimal ergonomics being the top priority, GS Global Resources engineers worked very closely with the OEM to determine what controls were essential to operators in order to efficiently design the armrest assemblies, keeping those functions at the operator’s fingertips. To ensure OEM satisfaction, GSGR utilized 3D printing so that their engineering team could […]

• •

  • Custom Seat & Height Adjustable Armrest Assembly

    In order to maintain the large number of necessary controls on this custom seat assembly, GSGR engineers designed a custom printed circuit board with push button encoders, allowing for highly specific control of the machine’s many windshield wiper functions. There is also a custom joystick assembly with a dual redundant proportional trigger, giving the operator […]

• •

  • Custom Seat with 5-Point Harness

    This custom seat gives operators an ergonomic, efficient central control station, while still keeping safety at the forefront with a 5-point harness.

• •

  • Electrically Rotating Seat with Custom Armrest Assembly

    With a similar feel to a standard automotive seat, this compact, innovative electrically rotating custom seat is complete with a custom adjustable armrest assembly, custom joystick, and programmable attached display.

• •

  • Ergonomic 270 Degree Rotating Seat

    This custom seat maintains optimal ergonomics with angled consoles for easy and comfortable switch and joystick use. Operators also have a greater field of vision, as the seat rotates 270 degrees with incremental locking points.

• •

  • Hydraulic and Electronic Motion Control System Integration Into Custom Seat

    This ergonomic seat, designed for crane cabs, is a great example of utilizing both hydraulic and electronic controls. Integrating hydraulic joysticks, as well as multiple custom switch panels and programmable displays, this seat assembly gives operators the power of hydraulic components, with the reliability and added safety features of electronics. For more information on how […]

• •

  • Narrow Joystick Pods for Compact Cabs

    Designed for compact forestry cabs, this lightweight, custom seat has narrow joystick pods while still maintaining the necessary control functions for the best overall operator efficiency and experience.

• •

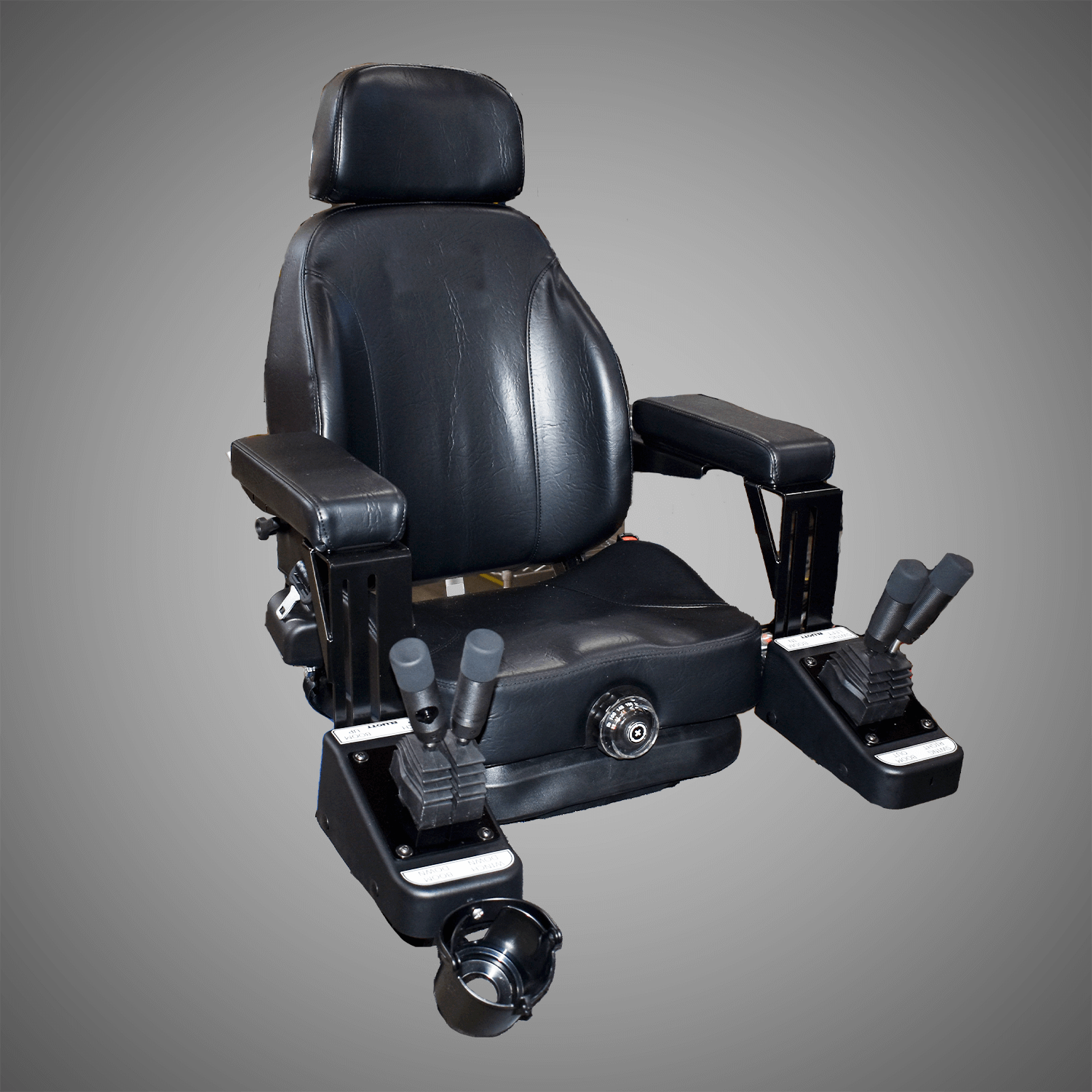

  • Seat Assembly for Tilting Crane Cab

    Efficient Seat Assembly Designed for a Tilting Crane Cab. Hydraulic Joysticks Mounted to Armrest with Haptic “Thumper” Function. Attached Dynamic Cup Holder Implemented for Tilting Function.

• •

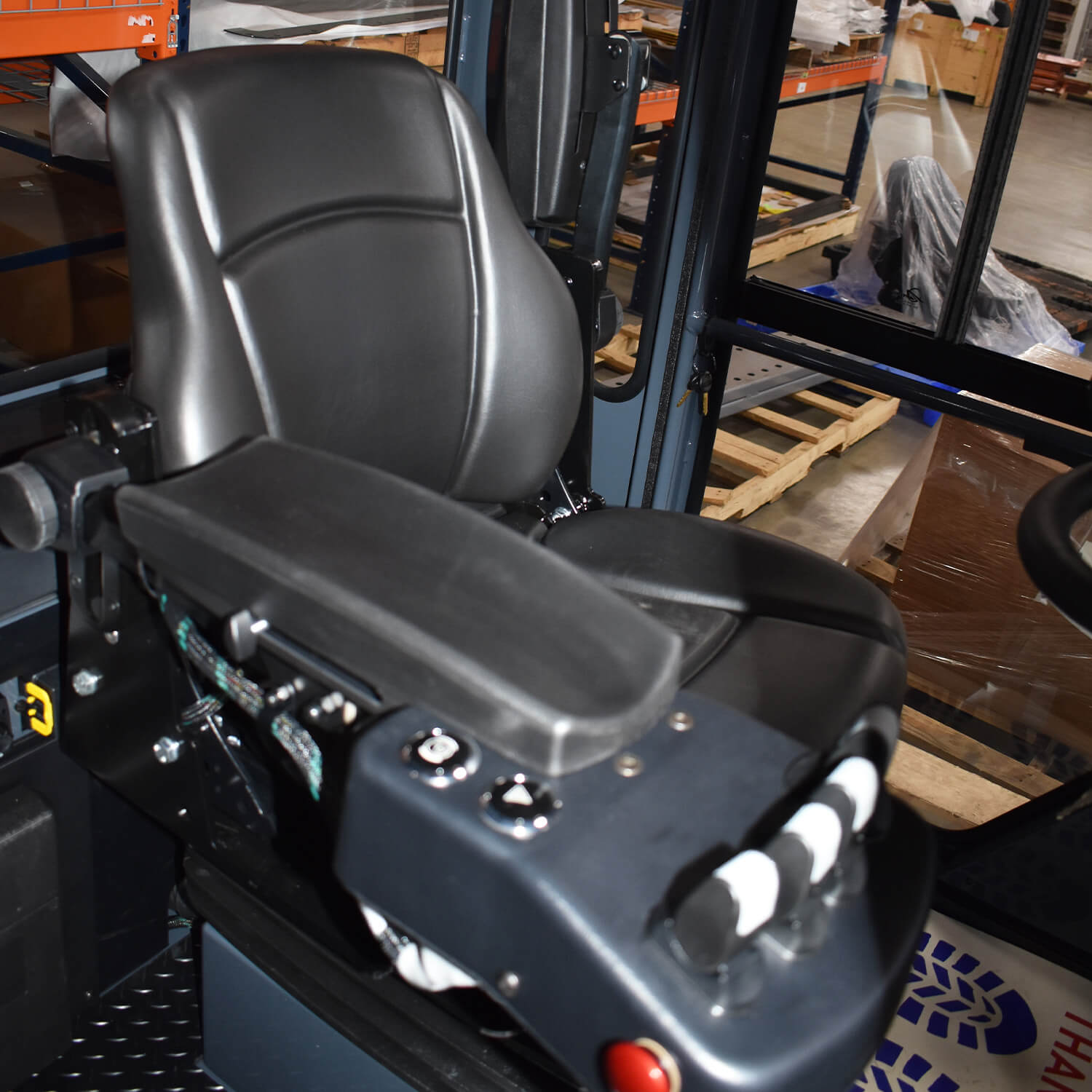

  • Seat Assembly for Utility Cab

    Compact and Modern Seat Assembly with Air Ride Suspension, Sittab Flex Armrests, and Optimal Ergonomics.

• •

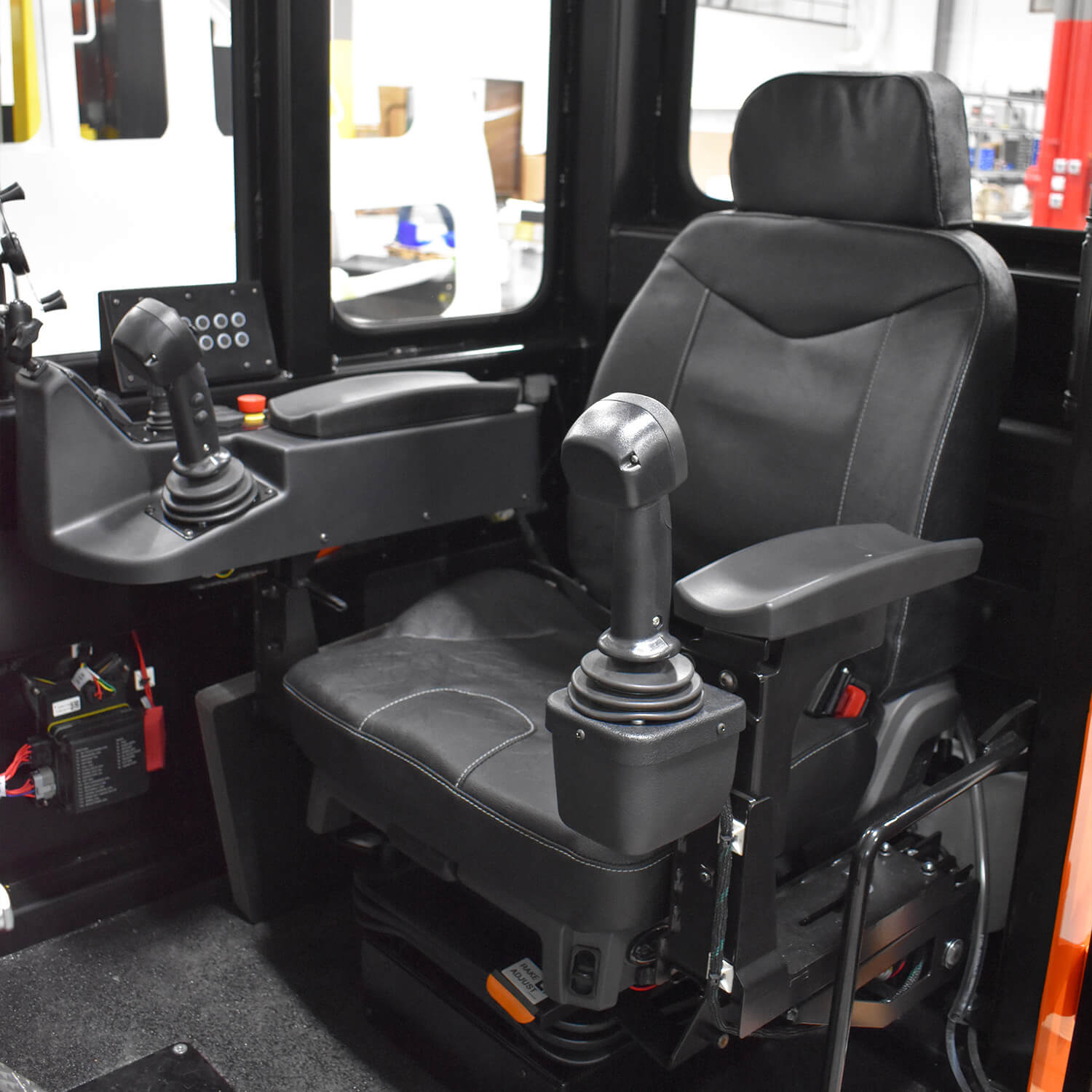

  • Seat Designed for Underground Mining Machine

    Ergonomic Seat Assembly with Custom Right Armrest Assembly, with Rocker Switches, Storage, and a Custom Joystick, as well as a Custom Left Joystick Pod with Omnidirectional Square Control.

• •

  • Simplified Seat Solution With Optional Lift Function

    Maintaining a simple solution while still integrating the necessary controls and creating an optimal operator experience can be difficult for OEMs. This seat is very thoughtfully designed to keep the necessary functions easily accessible, while also not overcrowding available space. It has an ergonomic custom joystick pod, secure storage for the operator, and multiple standalone […]
