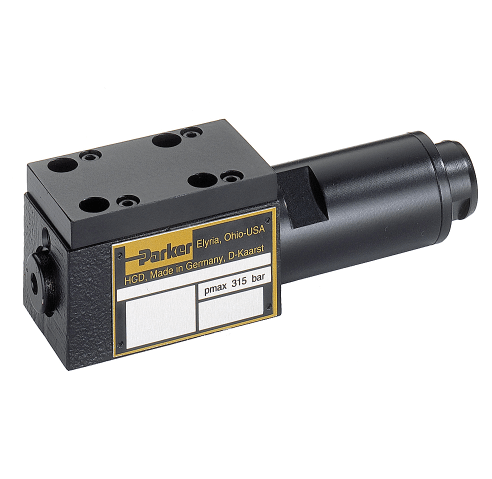

VM Series Direct Operated Pressure Reducing Valve

Direct operated pressure reducing valves series VM for subplate mounting regulate pressure in one area of a hydraulic circuit at a predetermined level below normal system pressure. Series VM features a spool type valve, five pressure ranges at NG6, three pressure ranges at NG10, and two adjustment modes.

• Specifications
  • + expand all
  • - collapse all

  Mechanical

  Interface	Subplate mounting acc. ISO 5781	-
  Mounting Position	Unrestricted	-
  Working Pressure	NG6: Ports P and - 350 bar (5,075 psi)	-
  	NG6: Port T - depressurized	-
  	NG10: Ports A and B - 210 bar (3,045 psi)	-
  	NG10: Port Y - depressurized	-
  Pressure Range	NG6: 25, 64, 160, 210, 350 bar	NG6: 363, 928, 2,320, 3,045, 5,075 psi)
  	NG10: 64, 125, 210 bar	NG10: 928, 1,813, 3,045 psi
  Nominal Flow	NG6: 25 LPM (6.6 GPM)	-
  	NG10: 60 LPM (15.9 GPM)	-
  Pressure Fluid	Hydraulic oil according to DIN 51524 … 51525	-
  Viscosity	Recommended - 30 to 50 cSt / mm²/s (139 to 232 SSU)	Maximum - 20 to 380 cSt / mm²/s (93 to 1,761 SSU)
  Pressure Fluid Temperature	Recommended: +30°C to +50°C (+86°F to +122°F)	Permitted: -20°C to +70°C (-4°F to +158°F)
  Filtration	ISO 4406 (1999), 18/16/13	-

  Environmental

  Ambient Temperature

  -20°C to +70°C (-4°F to +158°F)

  -
