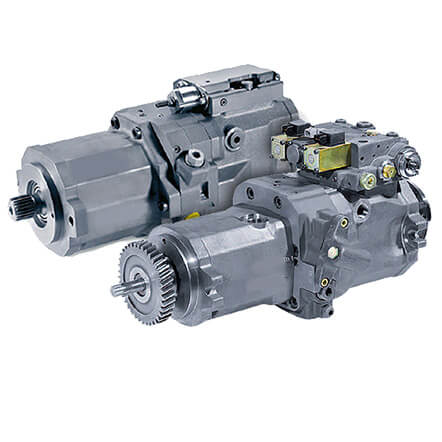

K-02 Hydrostatic Transmission

Hydrostatic Variator, Gearbox Installation or Gearbox Extension, Continuous Variable Transmission (CVT), High-Pressure Hydrostatics, Stepless For Optimum Performance, Variable Displacement Pump, Fixed Displacement Motor Back-to-Back.

Precise transmission control for simple operation without interrupting tractive effort. From standstill to maximum speed. Stepless.

A continuously variable transmission (CVT), also known as a shiftless transmission, single-speed transmission, stepless transmission can adjust seamlessly through a continuous range of effective gear ratios.

HST (hydrostatic transmission) is preferred over shifted gear transmission in various applications because of the stepless way in which HST’s speed ration can be changed.

Advanced modular drive technology, realized in hydrostatic variators for variable speed transmission, form the core of power split gearboxes. Compact units with a hollow shaft are available for mounting to conventional gearboxes in smaller machines. These compact units are used as fully hydrostatic systems with Power Take-Off (PTO) drive. With customer-specific developments, GS Global Resources along with our suppliers support the change from power shift to continuous variable transmission technology.

• Specifications
  • + expand all
  • - collapse all

  Characteristics

  	Variable displacement pump HPV-02 and fixed displacement motor HMF-02 back-to-back in one common unit	-
  	Inline-configuration	-
  	Integrated high pressure relief valves with charge and discharge function	-
  	External feed	-
  	Electric or hydraulic pump control	-

  Options

  Version for Gearbox Installation	-	-
  	Optimized for power split transmissions	-
  	Customized enclosure geometry	-
  	Engine power 120 - 165 kW	-
  	-	-
  Version for Gearbox Extension	-	-
  	Fully hydrostatic unit for mounting on conventional gearbox	-
  	Customized enclosure geometry	-
  	Engine power 120 - 165 kW	-

  Features and Benefits

  	Accurate control of volume flow	-
  	Exact gear shift without interrupting tractive effort	-
  	Dynamic response	-
  	Standstill control	-
  	Sensitive start-up	-
  	Precise crawling speed	-
  	High-efficiency	-
  	Low fuel consumption over entire operating range	-
  	Compact design	-
  	High-reliability	-
  	Long service life	-

  Markets

  	Turf Equipment	-
  	Agricultural Machinery	-
  	Material Handling Equipment	-
  	Construction Equipment	-

  Applications

  	Forklift Truck	-
  	Zero Turn Mowers	-
  	Gulf Course Maintenance Equipment	-
  	Utility Vehicles	-

• Market Applications

  Off-Road Forklift

  This off-road forklift is used to support large building construction projects. The forks can be loaded with up to 11,000 […] Read More



  PTO Through-Drive Motors

  Breakthrough in Drive System Design. In conventional drives, the torque of the hydraulic motor can be transmitted to the cardan […] Read More



  Dozer Hydrostatic Power Train

  A Hydrostatic Drive System Without Splitter Gear Box and Manual Gearbox. The robustness and durability of all series 02 components […] Read More
