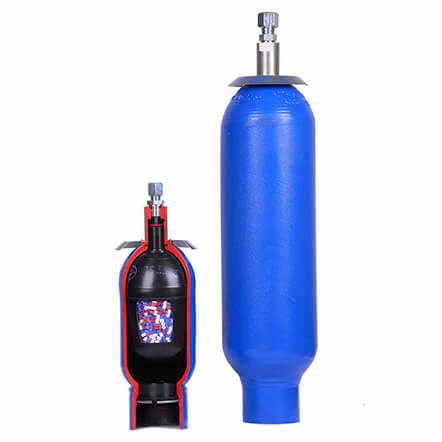

Hydraulic Pulsation Damper Bladder Accumulator, Volume 0.5, 1.0, and 2.5 Liters.
Maximum Operating Pressure Up To 40 (bar), Silicone Low-Pressure Especially Designed For Low-Pressure Fuel Systems.
This pulsation damper bladder accumulator is specially designed for installation on low-pressure fuel systems, typically in Marine and Power Generation applications, to attenuate pressure pulses (up to 40 bar/ 2.5 Liters).
The patented technology offered by this pulsation damper removes all risks and maintenance associated with pressurized gas and no precharge is required as Silicone particles are used instead. This third generation of damper integrates the brand new S2 rubber mix which offers improved longevity and efficiency and the new stem adapter which provides greater reliability. The pulsation dampers are specially designed for installation on low-pressure fuel systems, typically in Marine and Power Generation applications, to attenuate pressure pulses.
Features/Benefits:
- Longevity: This new generation offers enhanced longevity, delivering stable performance levels 35% longer than the previous models. The new stem adapter reduces the risk of leakage; 2 to 3 times lower than the past model and an improved strainer prevent silicone parts from entering the fuel system.
- Easy to install and use: The SBV3 is installed on the diesel engine inlet-outlet or outlet fuel lines. The bottom side is connected to the fuel system and the external connection on the top side, to a spill detection system. No additional fluids or gas precharge are required and its lightweight construction makes it easier to handle and transport
- Improved safety: The new stem adapter with 2 sealing zones significantly reduces the risk of hot fluid contact during inspection and maintenance. Its high-pressure safety factor and enhanced leak prevention also provide improved safety features
- Efficiency and Reliability: Offering a product lifetime of 35% longer than its former model the SBV3 offers better value for money and peace of mind. Robust shell design and improved stem adapter optimize this product for high stress and fatigue
- Extending System Life – Cost Saving: The reduction of pressure peaks in the fuel system will prevent damage to pumps/instrumentation and reduce the costs associated with system maintenance and repair
-
Specifications
- - collapse all
Performance Characteristics
Maximum Operating Pressure 40 bar - Operating Pressure 3 to 15 bar - Pre-Charge Pressures No precharge pressure requested Bladder filled with silicone particles Temperature Ranges (standard construction) -10° C to +150° C - System Fluids Suitable for diesel oil and heavy oil (MDO&HFO - Certifications PED, article 4.3, PED, article 4.3 + BV Marine, CE + BV Marine - Material of Construction Shell in forged carbon steel with epoxy paint Bladder mix S2 HNBR - Body Material All parts in carbon steel with Epoxy paint shell only (11) - Elastomer Material Compounds S2 type HNBR - Port Connection (inch) G2" according to ISO 228 - Valve Size (inch) No gas valve, pipe construction ø8 mm, No gas valve, pipe connection ø 10mm Fluid Type Fluid Type 1 CE Fluid Group 1 - Installation Vertical (fluid port on bottom side), preferable to horizontal - Weight (kg) 3, 6, 10 - Options
No special features or configurations - Accessories available - Features and Benefits
Logivity The new generation of SBV offers enhanced logevity, delivering stable performance levels 35% longet than the SBV2. The new stem adapter reduces the risk of leakage; 2 to 3 times lower than the SBV2 and an improved strainer prevents silicone parts from entering the fuel system Easy to install and use The SBV3 is installed on the diesel engine inlet outlet or outlet fuel lines. The bottom side is connected to the fuel system and the external connection on the top side, to a spill detection system. No additional fluids or gas precharge are required and its lightweight construction makes it easier to handle and transport Improved safety The new stem adapter with 2 sealing zones significantly reduces the risk of hot fluid contact during inspection and maintenance. Its high pressure safety factor and enhanced leak prevention also provide improved safety features Efficiency and reliability Offering a product lifetime of 35% longer than its former model the SBV3 offers better value for money and peace of mind. A robust shell design and improves stem adapter optimize this product for high stress and fatigue Extending system Life - cost saving The reduction of pressure peaks in the fuel system will prevent damage to pumps/instrumentation and reduce the costs associated with system maintenance and repair Markets
Marine - Oil & Gas - Power Generation - Applications
Marine Diesel Engines - Marine Diesel Power Supply Engines - Power Generation Stations/Containers - Fuel Supply Systems - -
