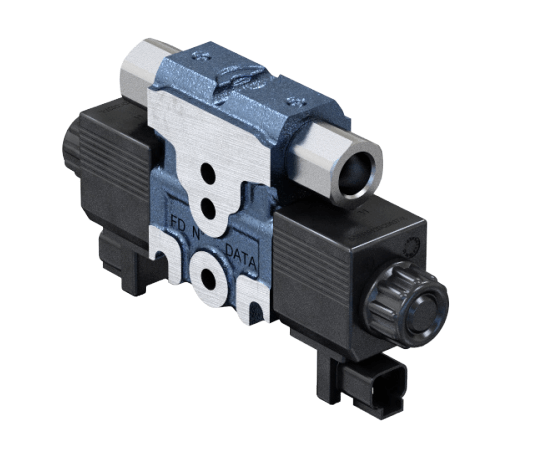

BW0500AO ByWire Element 4/3 with Side Ports, IBW0500 Interface

Specification table coming soon. See below for additional literature on this product.

• Specifications
  • + expand all
  • - collapse all

  Mechanical

  Nominal Flow	50 l/min	13.2 US gpm
  Nominal Pressure	250 (3625)	bar (psi)
  Maximum Tank Pressure	50 (725)	bar (psi)
  Internal Leakage	40 ± 20 cc/min	21 cSt - 100 bar
  Oil Viscosity	from 15 mm²/s to 90 mm²/s	15 cSt to 90 cSt
  Fluid	Hydraulic fluids as defined in ISO 6743-4 standard	-
  Weight	1.6 kg / 3.5 lb	-
  Interface	IBW0500	-

  Environmental

  Temperature Range	-20°C + 85°C NBR seals	Max peak +100°C
  	-20°C + 130°C HNBR seals	-

  Thread Port A and B

  Model	Type	Torque
  A	3/8" GAS ISO 1179	40 Nm
  C	M18 x 1.5 ISO 9974	40 Nm
  W	M18 x 1.5 ISO 6149	40 Nm
  E	3/4" 16 SAE ISO 11926	50 Nm
