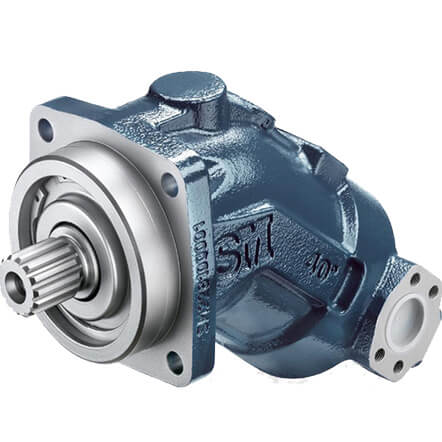

HM80/90 PF Pump
Bent-Axis Axial Piston Pumps, Fixed Displacement 80 | 90 cm³ (4.99 | 5,49 in³), Continuous 350 bar (5075 psi), Pressure Intermittent 400 bar (5800 psi), (Power-Transmission Hydrostatic Transmission).
The HM PF 80 | 90 fixed displacement axial piston pump is designed to work in an open circuit.
The system is designed in order to obtain 40° angle of inclination of the pumps with respect to the axle of the outgoing shaft.
This geometry allows:
- High static torque
- High volumetric and mechanical efficiency
- High maximum pressures
Bent-Axis fixed displacement axial piston pumps for open circuit applications are designed for operation in systems typified by heavy duty work cycles.
-
Specifications
- - collapse all
Performance Characteristics
Designed to work in an open circuit - Displacement 80 | 90 cm³ 4,88 | 5,49 in³ Continuous Pressure 350 bar 5075 psi Intermittent Pressure 400 bar 5800 psi Peak Pressure 450 bar 6525 psi Speed 1800 ⁿmax (minˉ¹) - Torque 445 | 501 Nm @ 350 bar - Weight 27,7 kg 61,1 lbs. Internal Mass 0,0072 kg•m² - - - By increase of the input pressure the max speed can be increased (see diagram in brochure) - Features and Benefits
System is designed in order to obtain 40° angle of inclination of the pumps with respect to the axle of the outgoing shaft - High static torque - High volumetric and mechanical efficiency - High maximum pressures - Markets
Mobile - Industrial - Forestry - Agriculture - Applications
Open circuit applications are designed for operation in systems typified by heavy duty work cycles - -
